CNC Series (Linear Motor)

Linear motor drive system for Z Axis only (for D322CL & D433CL) and XYZ axes (for A6040L)
Easy to use operate with user friendly HMI – only electrode material, workpiece material & surface roughness (Ra value) to be defined by the user
C axis tooling available as optional accessory (3R / EROWA)
ATC available as optional accessory
Models available with XY axes travel ranging from 300x200mm, 400x300mm & 600x400mm

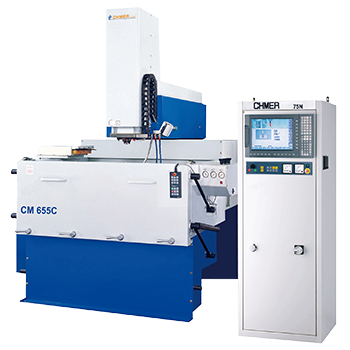

CNC series

Advanced CAD system design for ensuring deformation free performance & high accuracy machining
Precision ball screws on X, Y & Z axis
Linear guideways for X, Y & Z
Easy to use operate with user friendly HMI – only electrode material, workpiece material & surface roughness (Ra value) to be defined by the user
Tool changer & C axis tooling available as optional accessories
Models available with XY axes travel ranging from 300x200mm, 400x300mm, 600x500mm, 800x600mm, 1000x600mm, 1200x600mm

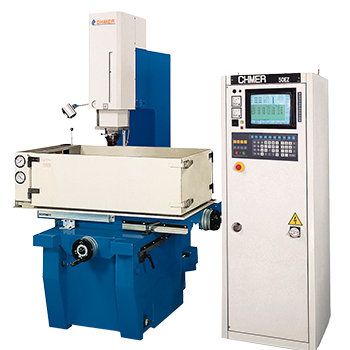

ZNC series

Conventional ZNC EDM machines suitable for variety of applications
Built in arc protection
15” TFT monitor
Ball screw motor in Z axis
Orbit cutting accessory available as optional
Models available with XY axes travel ranging from 300x200mm, 400x300mm, 500x400mm & 600x500mm
